由于该产品已进行多次功能升级和更新迭代,我们不保证IX51奥林巴斯倒置生物显微镜提供的图片和各项参数等信息均为最新,我们建议您点击此处联系我们的在线工程师为您服务,同时我们也欢迎您电话咨询:!

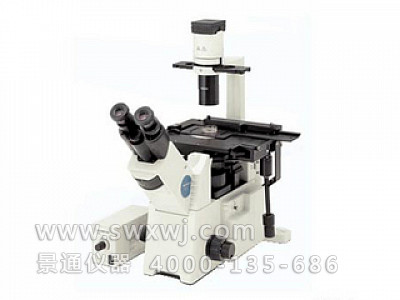

研究级倒置显微镜IX51 | ||
IX51-A12PH | Inverted Microscope | 1 |
显微镜镜体 | ||
IX51S8F3 | Microscope stand with sextuple revolving nosepiece and two step light path selector(observation:left side port= 100:0, 20:80), corresponded to near-infrared(700-1000nm), relay lens, prism, dust proof glass-AW multi coated | 1 |
双目镜筒 | ||
U-BI90 | Binocular tube | 1 |
机械式载物台 | ||
IX2-SFR | 2-way mechanical stage with flexible right-hand vertical low drive controls, including stage insert plate AQ1180 and screws AB5X12SA(4 pcs) | 1 |
相差插槽 | ||
IX2-SL | Phase contrast slider, centrable, with phase ring for 4X, phase ring for 10X/20X and hole for phase ring for 40X(IX2-SLPH2)or filter(45mm dia.), including centering tools AQ2302(2 pcs) | 1 |
相差环板 | ||
IX2-SLPH2 | Phase contrast ring slit | 1 |
IX2-SLPHC | Phase contrast ring slit | 1 |
灯柱 | ||
IX2-ILL30 | Illumination pillar for 30WHAL with one filter holder(45mm dia.), including fixing screws AB5X35SA(4 pcs) | 1 |
卤素灯供电箱 | ||
TL-4 | Power supply for 30W halogen lamp with output cable(0.64m)Corresponded to WEEE regulation | 1 |
30W卤素灯插座 | ||
U-LS30-3-5 | Lamp socket | 1 |
30W卤素灯灯泡 | ||
6V30WHAL | 30W Halogen bulb(Philips No. 5761) | 2 |
电源线 | ||
UYCP | Power cord | 1 |
防尘罩 | ||
COVER-020 | Dust cover Type 020 for IX2, MVX10(L 620mm x W 250mm x H 660 mm) | 1 |
万能平场半复消色差相差物镜 | ||
UPLFLN4XPH | U plan semi apochromat phase objective 4X/0.13, WD 17 | 1 |
平场消色差相差物镜 | ||
CPLN10XPH | Plan achromat phase objective 10X, NA 0.25, WD 10 | 1 |
长工作距离消色差相差物镜 | ||
LCACHN20XPH | Long working distance achromat phase objective 20X/0.4, WD 3.2 | 1 |
LCACHN40XPH | Long working distance achromat phase objective 40X/0.55, WD 2.2 | 1 |
目镜 | ||
WHN10X | Widefield eyepiece 10X | 1 |
WHN10X-H | Widefield eyepiece 10X, focusable | 1 |
对中望远镜 | ||
U-CT30 | Centering telescope | 1 |
绿色滤光片 | ||
43IF550-W45 | Interference green contrast filter 45mm dia. | 1 |
